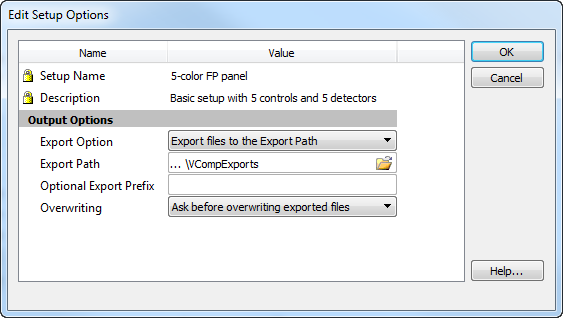

This dialog is displayed when the Options button is clicked on the ribbon bar. It allows some of the output options of the current V-Comp™ setup to be edited. The options in this dialog can be edited without requiring the program to re-compute the spillover.
Setup Name:
This displays the name of this setup from the Setup Wizard..
Setup Description:
This displays the description entered in the Setup Wizard.
Export Option:
When files are processed to apply V-Comp™ compensation, the new files can either be created in the same folder as the original file or into a user-specified export path. This option determines which location will be used. When the option is set for "Export files to the Export Path", the program will use the path specified in the next field of the dialog: Export Path.
Export Path:
This option is enabled when the Export Option is set for "Export files to the Export Path". Click the path editor to choose a path for the export.
Optional Export Prefix:
When files are processed and exported, they preserve the original file name and "_vcomp" is appended to that name. In addition, you can specify a prefix for the export file names. This will be added to the beginning of the exported file name.
Overwriting:
If there is already a file with the same export name in the export path, the program can ask whether you want to overwrite the file, or it can overwrite the file automatically. Choose the option that best fits your requirements.
